Motor Starting Relays

Single phase solid state and electro-mechanical motor relays. Manufactured and laboratory tested in South Africa since 1992.

Our story

About Our Motor Relays

Vektron Electronic Controls was founded in 1992 with a singular focus: manufacturing reliable single phase motor starting relays for the South African industrial market. At the time, the relays available locally were notoriously unreliable, and that gap in the market is what led directly to the development of our first product, the VK1.

The VK1 was designed for smaller single phase induction motors and quickly built a reputation for accuracy and durability. As demand grew, particularly from operators running larger equipment, we extended the range with the VK2 — a higher power variant covering the 1.5 Kw to 2.2 Kw band — to serve farming, poultry, and industrial applications where the VK1 was undersized.

In 2001 we made the move from electro-mechanical to solid state with the development of the VK4. The VK4 was put through extensive testing at the Femco Motor Manufacturing Laboratory, where engineers certified it as suitable for the complete range of Femco single phase motors across local and export markets. With no moving parts, automatic cut-out sensing and a wide 0.5–2.2 Kw power band, the VK4 became the workhorse of the Vektron lineup.

A terminal version, the VK4-T, was later introduced to dramatically reduce wiring complexity in applications like industrial polishers and scrubbers, where space and assembly time matter. Today, Vektron is the leading manufacturer of electronic motor relays in Africa, supplying the farming and poultry industries and continuing to test every single unit individually before it leaves the factory in Jeffreys Bay.

Specifications

Our Relay Range

Four models covering the full single phase induction motor range from 0.1 Kw to 2.5 Kw, with both electro-mechanical and solid state options.

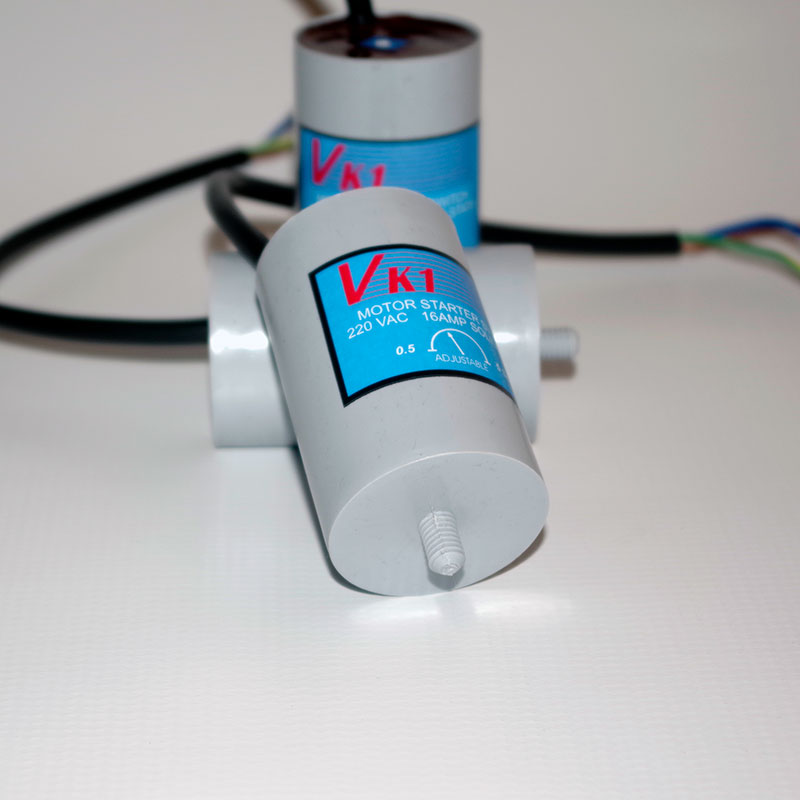

Vektron VK1 motor starting relay

VK1 Motor Starting Relay


TypeElectro-Mechanical
AMP Rating16 AMP
Power Range0.5 Kw to 1.5 Kw
SensingTimed, adjustable 0.25 to 4 seconds

Reliable electro-mechanical relay for smaller single phase induction motors — the foundation of the Vektron range.

Download Data Sheet

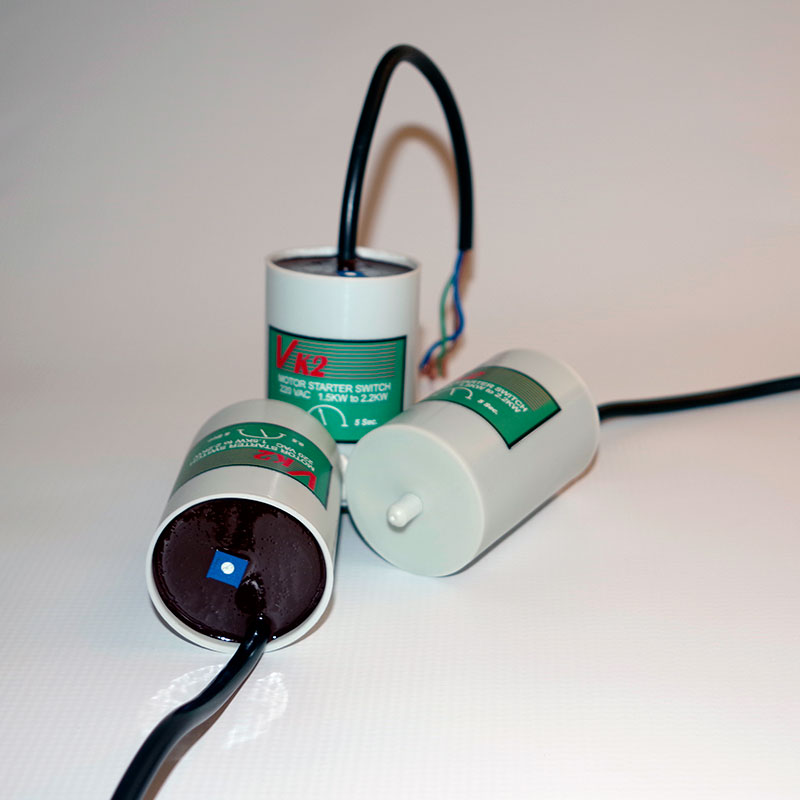

Vektron VK2 motor starting relay

VK2 Motor Starting Relay


TypeElectro-Mechanical
AMP Rating30 AMP
Power Range1.5 Kw to 2.2 Kw
SensingTimed, adjustable 0.25 to 4 seconds

Higher power variant of the VK1 for medium motors in farming, poultry and general industrial applications.

Download Data Sheet

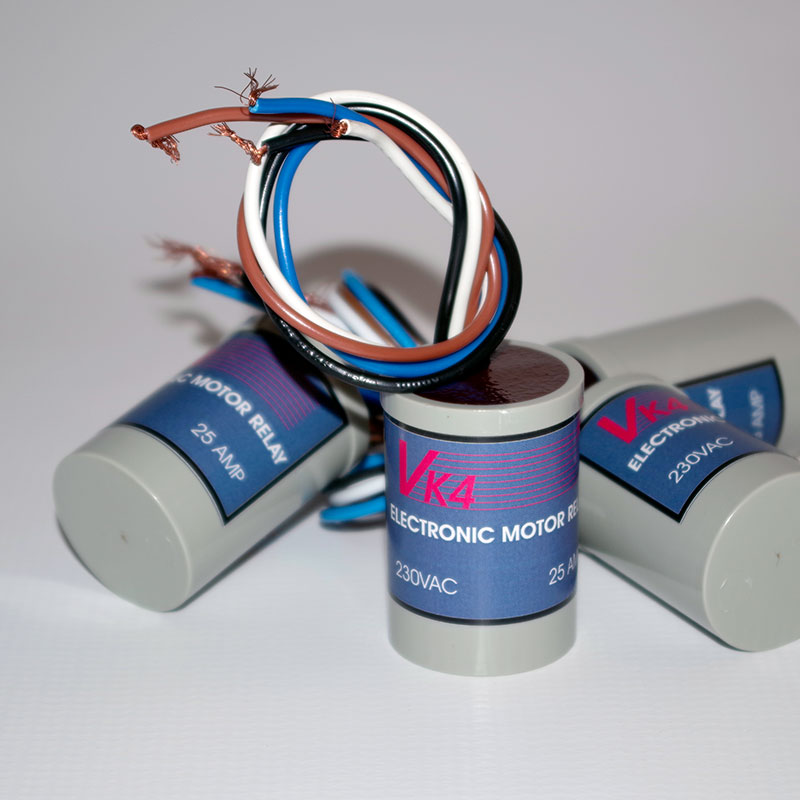

Vektron VK4 wire connection motor starting relay

VK4 Motor Starting Relay (Wire)


TypeSolid State Electronic
AMP Rating25 AMP
Power Range0.5 Kw to 2.2 Kw
SensingAutomatic cut-out sensing

Solid state flagship with no moving parts and automatic cut-out sensing — Femco laboratory tested and certified.

Download Data Sheet

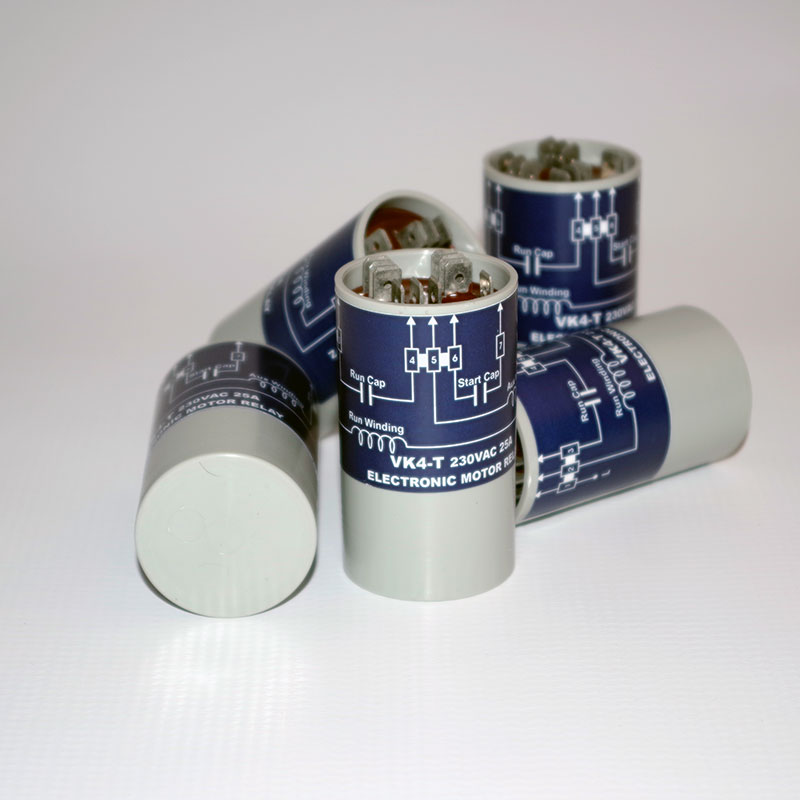

Vektron VK4-T terminal motor starting relay

VK4-T Motor Starting Relay (Terminal)


TypeSolid State Electronic
AMP Rating25 AMP
Power Range0.5 Kw to 2.2 Kw
SensingAutomatic cut-out sensing

Terminal connection variant of the VK4 — designed for industrial polishers and scrubbers where reduced wiring matters.

Download Data Sheet
Side by side

Quick Comparison

All four models compared on the specifications that matter — from electrical rating to recommended use case.

Specification VK1 VK2 VK4 Wire VK4-T
Type Electro-Mechanical Electro-Mechanical Solid State Solid State
AMP Rating 16 AMP 30 AMP 25 AMP 25 AMP
Power Range 0.5–1.5 Kw 1.5–2.2 Kw 0.5–2.2 Kw 0.5–2.2 Kw
Sensing Method Timed, 0.25–4 s adjustable Timed, 0.25–4 s adjustable Automatic cut-out Automatic cut-out
Best For Small motors, 0.5–1.5 Kw applications Medium motors, farming and poultry industry All single phase motors, standard wiring Polishers, scrubbers, reduced wiring setups
FAQ

Motor Relay FAQs

Common questions about the differences between solid state and electro-mechanical relays, applications, Femco compatibility and data sheets.

A solid state relay uses electronic components with no moving parts, making it more durable and reliable than electro-mechanical relays. The VK4 solid state relay uses automatic cut-out sensing, while the VK1 and VK2 are electro-mechanical with adjustable timed sensing.

Vektron relays are widely used in the farming and poultry industries across South Africa. They are also suitable for pool pumps, air compressors, industrial floor polishers, scrubbers, and any application using single phase induction motors.

Yes. The VK4 relay was tested by engineers at the Femco Motor Manufacturing Laboratory and declared suitable for the complete range of Femco single phase motors for both local and export markets.

Yes. PDF data sheets are available for the VK1, VK2, VK4 wire connection and VK4-T terminal connection models. Download links are on this page next to each product.
